Best quality image

The AHD PNI House PTZ1300 surveillance kit offers a high quality image so that the protected space is always safe.

The 4 cameras included in the package can be mounted outside or inside easily. The metal housing and the IP66 protection index allow the cameras to be mounted in humid and dusty conditions.

They have a Full HD 2MP resolution (1920 x 1080), and the 36 IR LEDs ensure night visibility of up to 30 meters.

Local or remote real-time surveillance

By connecting to a monitor in the HDMI or VGA output of the DVR you can watch in real time everything that happens in the protected space. Also, through the monitor, access the DVR menu and make the necessary system settings, update the firmware or manage users.

The PNI House PTZ1300 package can be viewed and controlled remotely via the mobile application or using a computer (with Windows operating system).

Download the XMEye app for Android and iOS or General CMS for Windows

Registration type

The PNI House PTZ1300 AHD Surveillance Kit supports a 3.5 "HDD up to 14TB. We recommend installing a dedicated HDD for video surveillance .

Due to the type of H.265 + video compression, one of the most efficient, the storage space is maximized without affecting the video quality.

The DVR / NVR can record in: manual, programmed, motion detection or alarm mode.

The recording unit also supports cameras with PTZ, human detection or chip function.

Optimal mounting

Thanks to the 3 adjustment points of the camera (two at 360 degrees, one at 180 degrees) the assembly is a fast, easy and efficient one that allows you to supervise even the darkest angles.

You can connect to this DVR / NVR not only the 4 AHD cameras included in the package. It also supports the network connection of IP cameras:

Analog: 4 x 5M-N (MP)

IP: 16 x 1080P or 8 x 5MP

Hybrid: AHD 4 x 5M-N (MP) and IP 2 x 1080P

Full package

The AHD PNI House PTZ1300 surveillance kit is equipped with everything you need to get it up.

The package contains:

1 x DVR / NVR (without HDD)

1 x DVR / NVR power supply

4 x surveillance cameras

1 x power supply surveillance cameras

1 x 1x5 splitter

4 x video and power cables (18.3 meters)

1 x USB mouse

1 x remote control (without batteries)

Software CD and user manual

Product identification

Producer: PNI

Product code: PNI-PTZ1300

DVR color: Black

Camera color: White / Black

DVR / NVR features

Video inputs: 4 x BNC

Video output: HDMI, VGA, Composite (BNC)

Playback resolution: 1080P (VGA) / 1080P (HDMI)

Display mode: 1/4/9 Audio inputs 4 x RCA

Audio outputs: 1 x RCA

Audio compression: G711A

Video compression: H.265

Data storage maximum: 1 x 14TB HDD (not included) dedicated video surveillance

Network interface: RJ45 10/100 Mbps

Serial interface: 1 x RS485

Firmware update: Yes, via USB

Supply voltage: 12V / 2A

Consumption max.: 15W (without HDD)

Operating temperature: -26 ° C ~ + 60 ° C

Size: 255 x 218 x 43 mm

PTZ control: Support

USB ports: 2 x USB2.0

Dedicated application: XMEye

Network: Yes, RJ45 LAN Port

Ways of registration: Manual, alarm, motion detection, programmed Motion detection: Yes

Chip detection: Yes

Human form detection: Yes

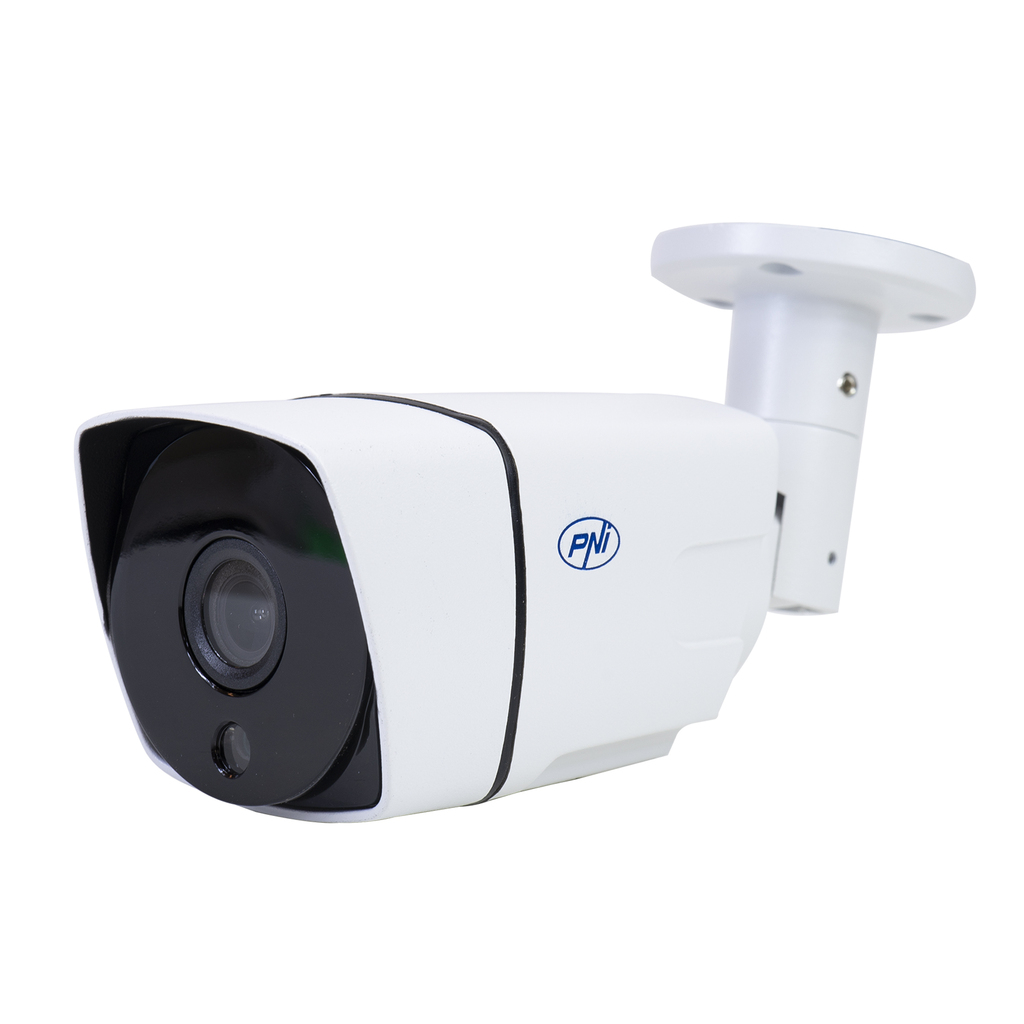

Camera features

Sensor resolution: 2MP

PIXEL: 1920 × 1080

Resolution: 1080P

Video output: Analog, 75Ω, BNC connector

Minimum lighting: 0 Lux (IR on)

Degree of protection: IP66, metal housing

IR illumination distance: Up to 30 m

Number of IR LEDs: 36

Feeding: 12V / 1A

Lens: 3.6 mm

Operating temperature: -26 ° C ~ + 60 ° C
