Multifunctional illuminated screen

The illuminated screen displays the current mode of operation of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the selected channel number, as well as the power of the received signal and the transmitted signal.

Portable, small size

Similar to a walkie-talkie, the CB PNI Escort HP 62 station is extremely accessible and comfortable to use due to its small size, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the confined spaces on board any car.

Multiple functions

Although small in size, the PNI Escort HP 62 is equipped with most of the functions required for a CB station, thus satisfying the requirements of any user. Functions such as RF Gain, Scan, Automatic Squelch, Dual Watch or Last channel recall make the station easy to adapt to different communication needs.

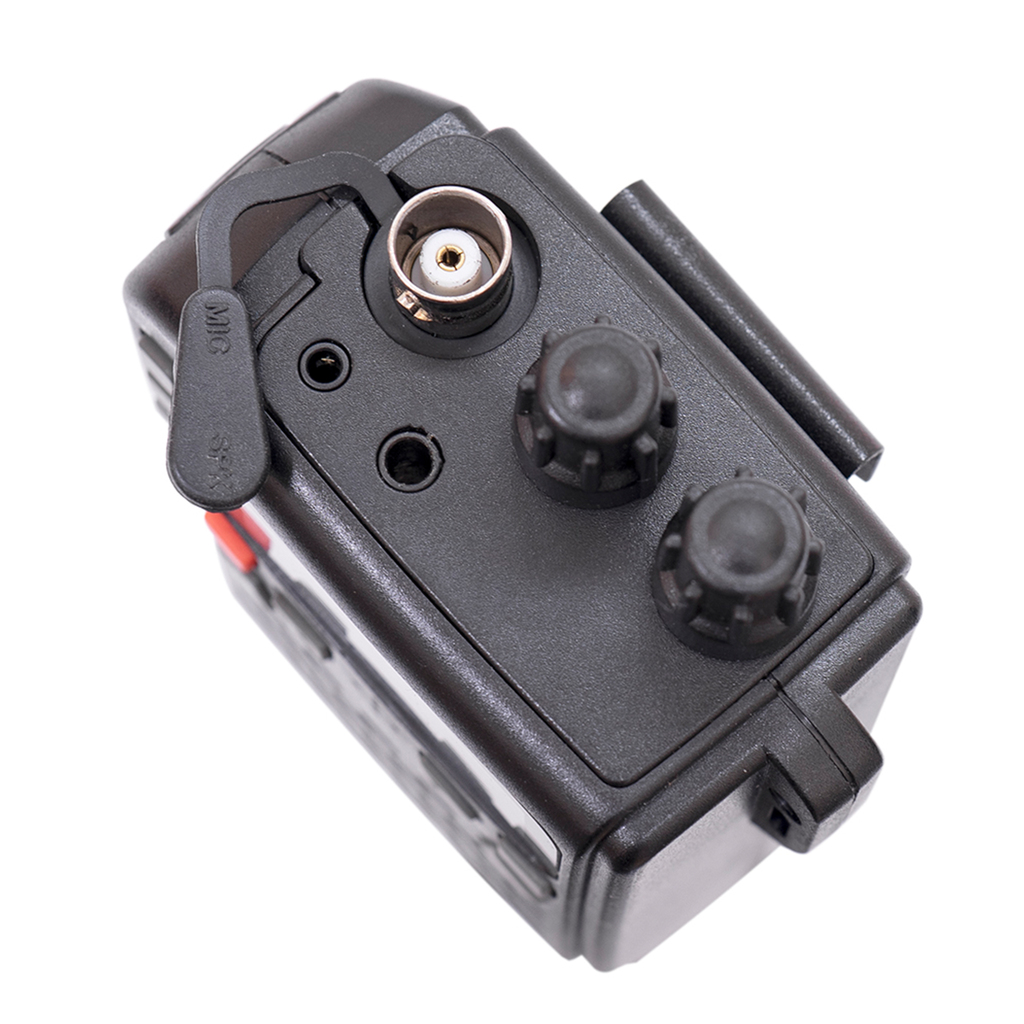

Connectivity: BNC connector, 2-pin plug and PL259 plug

The CB PNI Escort HP 62 radio station has a double use: in the car as a mobile station together with the antenna mounted on the body and outside as a portable station, installing a BNC antenna and batteries (optional accessories). The connections for microphone and speaker allow the connection of a 2-pin headset with which we can communicate in handsfree mode.

PNI-AK-HP62 - PNI PB-HP62 Li-Ion 1500mAh battery kit plus 230V power supply 8.4V output and BNC antenna for PNI Escort HP 62 station

With the package that contains a PNI PB-HP62 Li-Ion 1500mAh battery, a 230V power supply and a BNC antenna you can transform the PNI HP 62 radio station into a portable station so that you can take it with you anywhere.

Recommended especially in parking lots for fast and efficient communication with drivers or even in leisure expeditions if the other participants also have a station operating in the CB band (27 MHz).

Compatible with CB PNI Escort HP 62 radio station

This kit is specially created for so many portable CB radio PNI Escort HP 62. The battery has a capacity of 1500 mAh and can be charged anywhere at a 230V socket with the power supply received in the package.

PNI-HP62 - Portable CB radio station PNI Escort HP 62, multi standard, 4W, 12V, AM-FM, ASQ adjustable on 5 levels, RF Gain on 9 levels, Dual Watch, Scan, Lock

Product identification

Product code PNI-HP62

Brand PNI

General characteristics

Frequency 26,965-27,405 MHz

Transmission band type AM-FM

Channe ls 40

Feeding 12 V

Dimensions (W x H x H / Weight) 73 x 35 x 92 mm (without power adapter) / 332 g (adapter included)

Sensitivity (10dB) 0.5uV (AM) 0.25uV (FM)

Audio speaker power 0.5W

Audio signal distortion less than 3% @ 1KHz

Emission power 4W

Modulation 90% +/- 5%

Current absorbed 900mA

Model Portable

EEPROM memory Yes

Additional external speaker jack Yes

Special features

Dual Watch Yes

Scan channel Yes

RF Gain Yes, 9 levels

ASQ - Automatic squelch Yes, 5 levels

Keypad lock Yes

CSF - the last selected channel

Multicolored screen Orange

9/19 emergency channel button Yes

Channel memory Yes

Adjustable ASQ Yes

SQ - Squelch Yes

RF PWR Yes

SWR meter Yes

VOX Yes

Accessory connection 2-pin plug

Digital automatic squelch (ASQ) Yes

Operating temperature -26 ~ + 55 ° C

Screen Yes, multifunctional backlight

Front panel connections

Jack 2 pins Yes

The package contains

Radio station Yes

Microphone holder

Station mounting bracket Yes

Power cord Yes

Lighter plug Yes 12 V

Antenna and power adapter Yes

PNI-AK-HP62 - PNI PB-HP62 Li-Ion 1500mAh battery kit plus 230V power supply 8.4V output and BNC antenna for PNI Escort HP 62 station

Product identification

Product code PNI-AK-HP62

General characteristics

Capacity 1500 mAh

Tension 8.4V

Size 55 x 30 x 75 mm (battery) 20 cm (antenna)

Compatible with PNI Escort HP 62

Weight 102 g (without power supply and antenna)

The package contains

Battery Yes

Power adapter Yes

Antenna Yes
