Cell unit parameter

1:working voltage:2.5V–3.65v > 0°C ,2.0V–3.65v ≤0°C

2 :Battery types and materials: LiFePO4

3Rated voltage/capacity: 3.2V , 100Ah @25℃, 0.33C

4:Low temperature capacity: ≥70% (1C to 2.0V， -20±2℃ )

5:Single battery weight: 1.92±0.05Kg

6:Charge temperature :0°C – 50°C

7:Discharge temperature : -20°C – 55°C

8:Storage temperature :0°C–35°C( ≤ 6 month)

9:Cycle times :4000(80%上限、在0.5C、25℃、100%DOD 时)

10:certification:UN38.3、UL1973、9540、UN

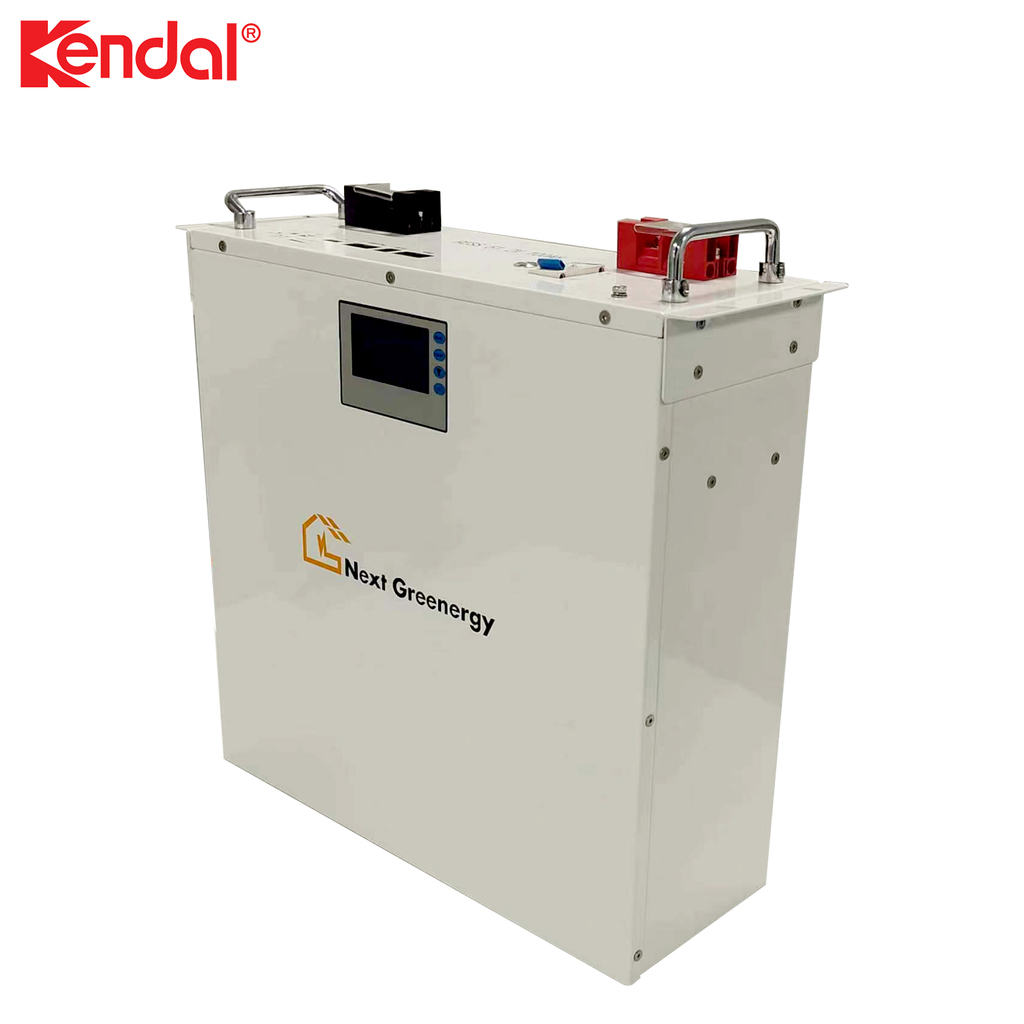

Battery parameter

Battery unit configuration 16S1P

Nominal voltage 51.2 volts

Minimum rated capacity of 100Ah

Battery operating voltage 40V – 57.6V

Battery charging operating temperature 0 ° C-50 ° C

Battery discharge operating temperature -20 ° C-55 ° C

Total energy 5.12 kWh

Battery State of Charge 5% -95% (recommended)

Charging normal current 50A

Maximum continuous current 100A (25 ° C ± 2)

discharge

Normal current 50A

Maximum continuous current 100A (25 ° C ± 2)

Maximum pulse current 150A 500ms

Battery cycle life 3200 (80% upper limit at 0.5C, 25 C, 100% DOD)

Environmental relative humidity 60% ± 25% relative humidity

Environmental storage temperature 0 ° C-35 ° C (long-term storage, ≤ 6 months)

Cooling type: natural cooling

IP level IPX2 (minimum)

Insulation resistance ≥ 10M Ω
