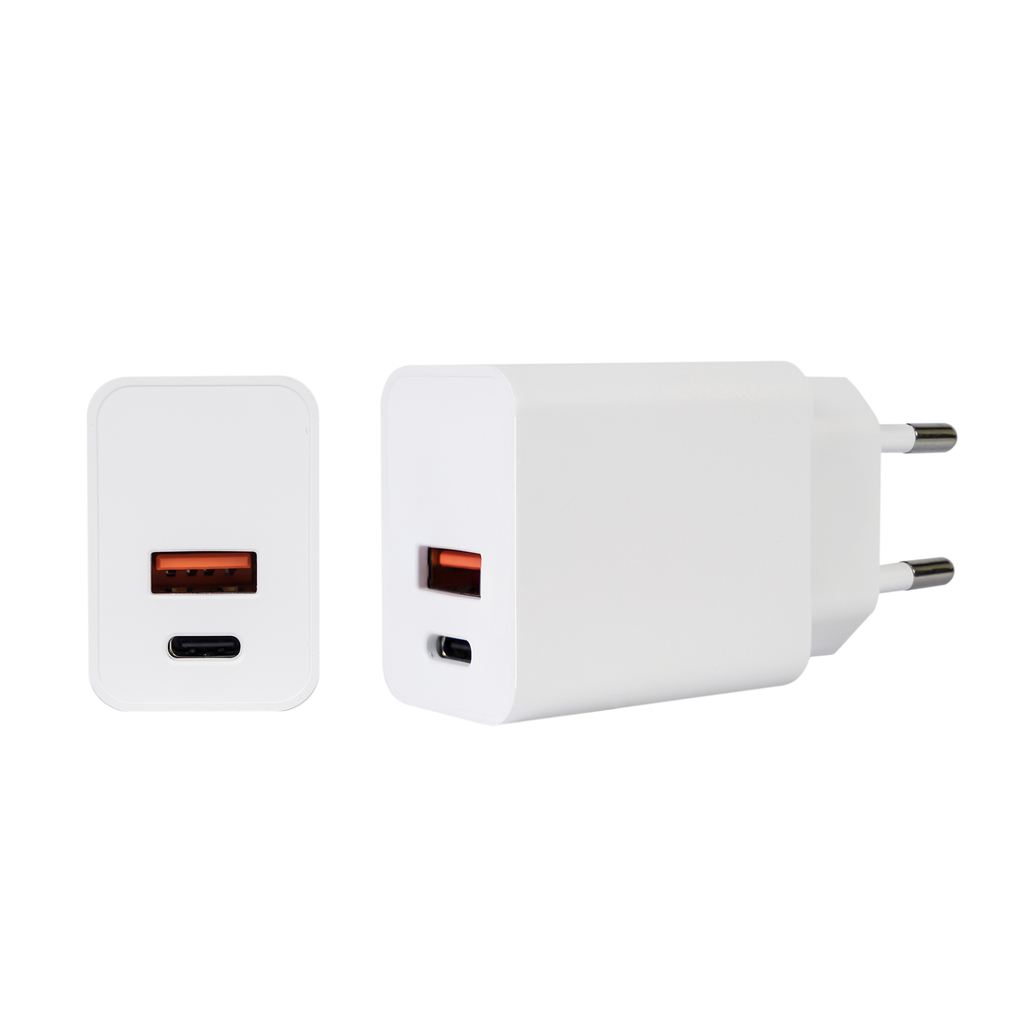

Power adapter with USB Type C and USB Type A

USB charging adapter with two ports, USB-A and USB-C, with a maximum output of 30W 3A that supports the charging of two devices separately or simultaneously (5V 3.4A max. 17W).

The intelligent IC can automatically detect the devices plugged into each port, identifying the appropriate voltage and amperage to charge each device at their full speed.

USB-C: 5V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A - 30W max.

PPS: 3.3V-11V/3A, 30W max.

USB-A: 3.6V-6V 3A, 6V-9V 2A, 9V-12V 1.5A, 15V 2A, 20V 1.5A - 30W max.

USB-C+USB-A: 5V 3.4A, 17W max.

PD3.0, PPS and QC3.0

Featuring PD3.0, PPS and QC3.0 charging technologies, this USB wall charger gives all USB-C and USB-A devices (including iOS and Android smartphones, laptops and more) an amazing increase in loading speed.

Charge compatible devices up to 3 times faster than conventional charging.

The USB-C port is compatible with QC2.0, QC3.0, PD2.0, PD3.0 and PPS.

The USB-A port is compatible with QC2.0 and QC3.0.

Protection measures

Protection measures (over current / over voltage / short circuit / fire resistance) guarantee the safety of you and your device. In addition, charging will automatically stop when the devices are fully charged.

Product identification

Product code PNI-CHG300

General characteristics

Input voltage 230

Maximum input current 0.8A

Maximum power 30W

USB port 1 x USB Type C, 1 x USB Type A

USB Type C output voltage 5V 3A / 9V 3A / 12V 2.5A / 15V 2A / 20V 1.5A

PS 3.3V - 11V 3A, 30W max.

USB Type A output voltage 3.6V - 6V 3A / 6V - 9V 2A / 9V - 12V 1.5A / 15V 2A / 20V 1.5A

Color White

Size 100 x 45 x 28 mm

Weight 72 gr

The package contains

Adapter Yes
