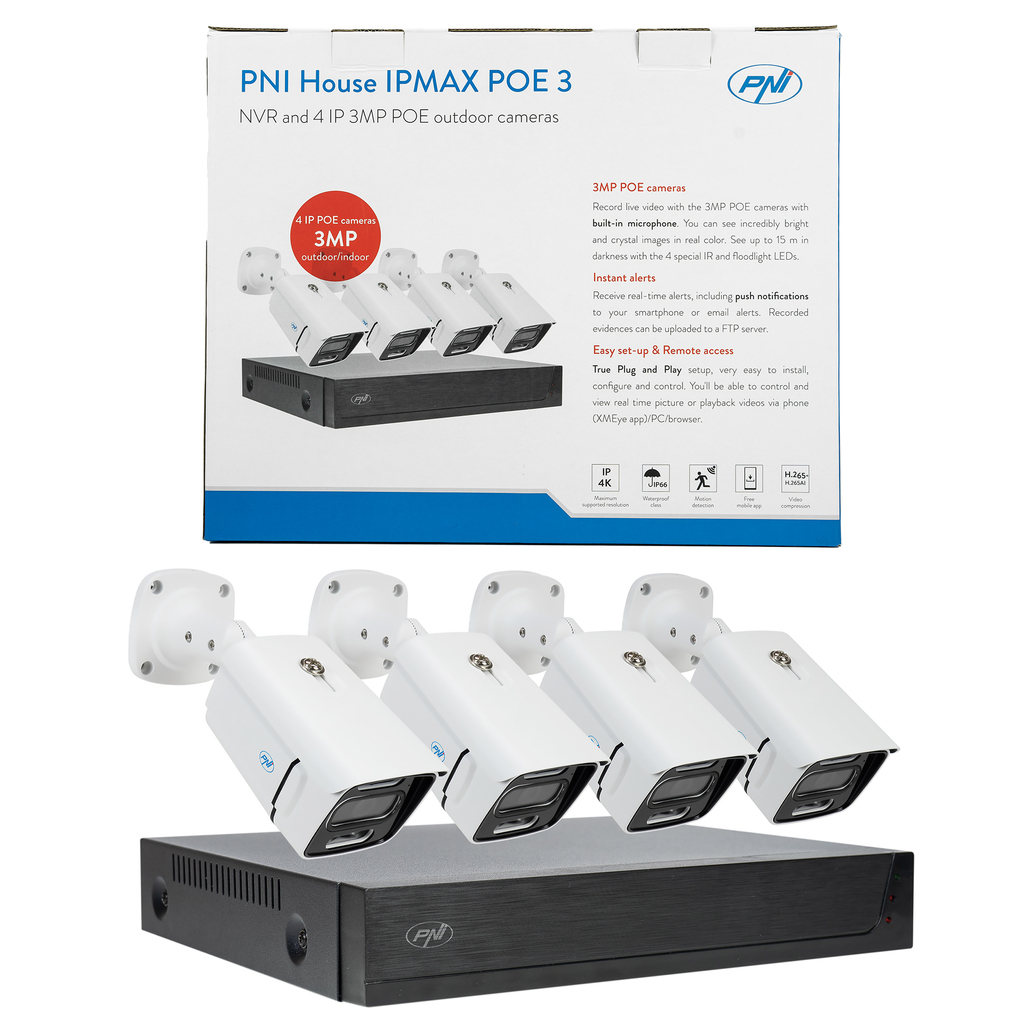

CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse

  • CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse
  • CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse
  • CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse
CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse CCTV PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse

Access and control methods


PNI House IPMAX POE 3 can be controlled locally or remotely from mobile devices through the XMEye application compatible with Android and iOS, and from the PC through the General CMS software. The CMS software installation file can be found on the CD included in the package or can be downloaded from our website, on the product page, Download section.


4 POE 3MP cameras. H.265 AI video compression


The PNI House IPMAX POE 3 surveillance system includes a recording unit (NVR) and 4 POE cameras that can be used both indoors and outdoors.

The system records image and sound through the 4 3MP POE cameras (2304 x 1296px) with built- in microphone . You will get incredibly bright and clear images in real colors. The 4 IR LEDs and Flashlight (white light) provide visibility at night for a distance of up to 15 meters.

Optimize storage space (supports up to 8TB HDD, HDD not included) with H.265AI / H.265 + video compression, the newest and most efficient compression technology, without compromising video quality.


9 channels maximum 4K (8MP)

The PNI House IPMAX POE 3 surveillance system supports the connection of 4 POE cameras (via direct connection to the 4 POE ports on the NVR) or 9 POE cameras (via a POE switch) up to 8MP (4K) or the network connection of 9 cameras with IP up to 8MP (4K).


Connectors

You can connect several types of monitors, the device is equipped with HDMI and VGA output. Video recordings stored on the HDD installed in the NVR (HDD not included) can be downloaded locally to a USB stick, via the USB2.0 interface, or remotely via the Internet, directly to a PC. The NVR can be connected to the Internet via the RJ45 LAN port.


POE (Power over Ethernet)


A single Ethernet cable is required to simultaneously transmit video signal to the NVR and power to the cameras. Safe, stable and reliable transmission. So don't worry about connecting cameras and long coaxial cables that can affect image quality. The cameras work with CAT5-CAT7 network cables up to 100 meters long. The package includes 4 18.3 meter Ethernet cables.


Easy setup and remote access via the XMEye app

True Plug and Play configuration, very easy to install, configure and control. You will remotely control and view images in real time or play recordings by phone, XMEye application, CMS software (Windows) or Internet Explorer browser.


Face and human form detection


The PNI House IPMAX POE 3 surveillance system supports the function of identifying the human face or human form (depending on the connected cameras) and saves in its own memory different hypostases of the face based on which the user will be able to select video recordings.


Compatible recording unit


PNI House IPMAX POE 3 supports the connection of a hard disk up to 8TB. We recommend use only with hard drives dedicated to surveillance systems with guaranteed reliability, strength and quality 24/7.



Product identification

Producer PNI

Product code PNI-IPMAX3 DVR / NVR

Color Black

Room color Black and white


DVR / NVR features

Video inputs 4 x POE max. 4K

Video outpu t 1 x VGA, 1 x HDMI

Playback resolution 2K (HDMI) / 1080P (VGA)

Registration resolution 9 x max. 4K

Audio outputs 1 x 3.5 mm

Audio compression G711A

Video compression H.265AI / H.265 +

Data storage max 1 x 8 TB HDD 3.5

Network interface RJ45 10/100 Mbps

Firmware update Yes, via USB

Supply voltage 48V / 2A

Consumption 10 W (without HDD)

Operating temperature -26 ° C ~ + 80 ° C size 255 x 220 x 43 mm Number of channels 9 digital

Recording resolution and number of channels, variants 9 x max. 4K PTZ control Support USB ports 2 x USB2.0

Dedicated application XMEye

Network Yes, RJ45 LAN Port

Ways of registration Manual,motion detection, programmed

Motion detection Yes

Chip detection Yes

Human form detection Yes


Camera features

Video system PAL / NTSC PIXEL 2304 x 1296

Video output Digital, via RJ45

Audio input Built-in microphone

Minimum lighting 0.01Lux / F2.0 (Color), 0Lux / F2.0 (IR on)

Degree of protection IP66, metal housing

IR illumination distance Up to 15 m

Size 70 x 190 x 65 mm

Number of IR LEDs 4 IR and Floodlight LEDs

Feeding POE LENS 3.6 mm

Network interface RJ45 10 / 100Mps

Operating temperature -26 ° C ~ + 80 ° C

Dedicated application XMEye

Sensor resolution 3MP


The package contains

DVR / NVR Yes

Surveillance cameras 4 interior / exterior rooms

Room connection cables 4 x 18.3 m

NVR / DVR power supply 230V -> 48V

CD Software Yes

User manual Yes

USB mouse Yes
