Gas detection capability

The gas sensor in the PNI Safe House 200 kit has the ability to detect several types of gas: natural gas LPG, CO gas, 25% LEL gas.

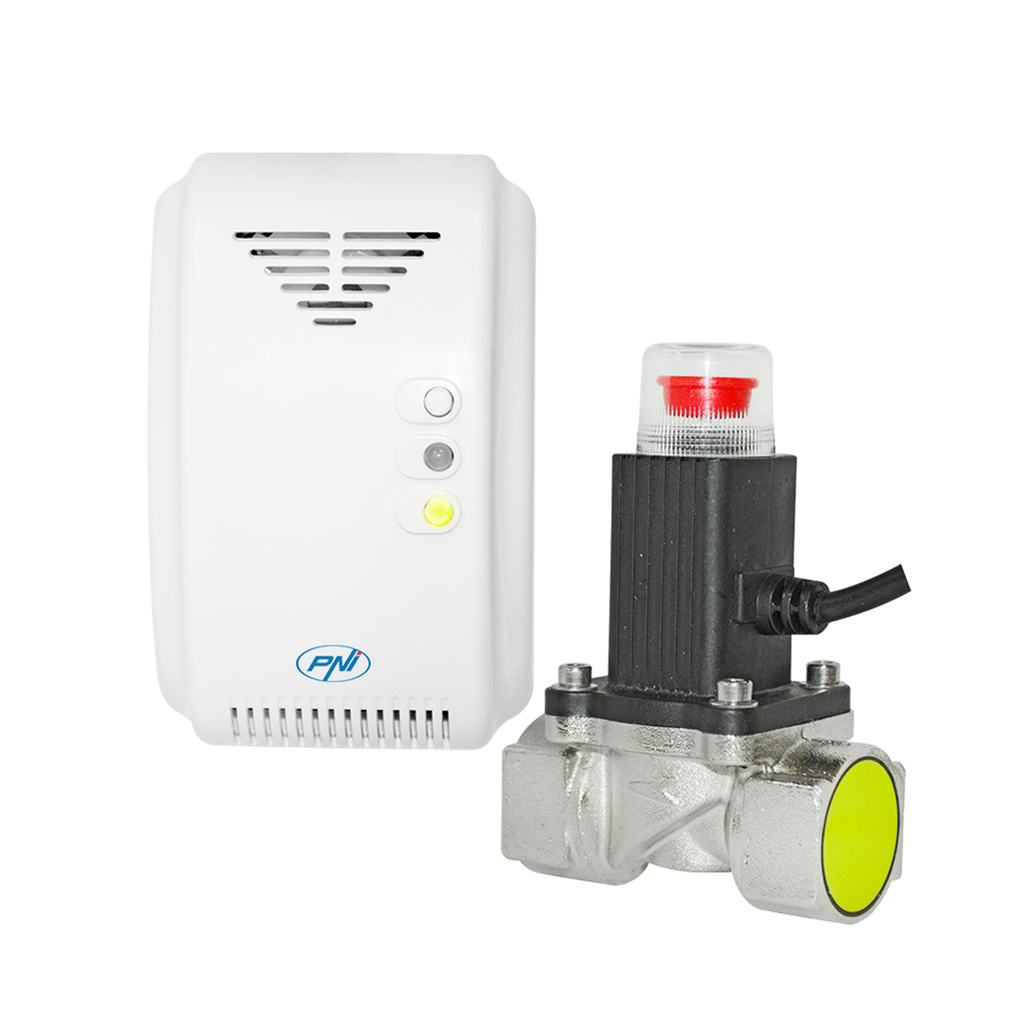

Full package

Take advantage of the purchase of a complete package of detection and interruption in safe conditions of gas supply of a home. The package contains a gas sensor and an solenoid valve. Power and connection cables are included.

Sound / light warning

Benefit from multiple warning from the gas sensor, which alerts both sound, emitting a sharp "BIIIIIIIIP" sound, as well as bright through the LEDs on the front. These indicate besides the alarm status and other functions of the device.

Pleasant design, wall mounting

The design of the product is pleasant, with rounded edges, white, which makes it compatible with any location where it can be mounted. The detector was specially designed for wall mounting (SMT -Surface Mount Technology).

Product identification

Manufacturer: PNI

Product code: PNI-SH200

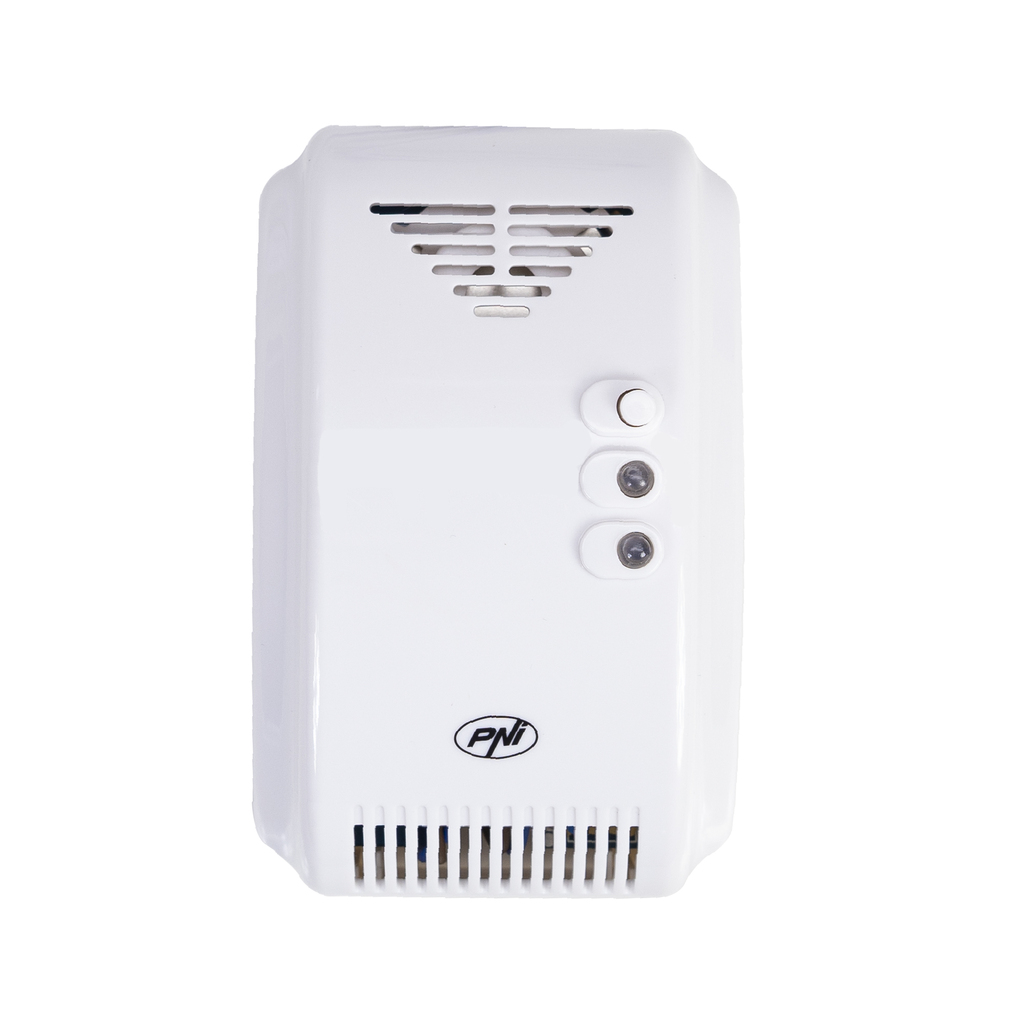

Gas sensor features

Types of gas detected: Natural gas, LPG, oil gas

Energy consumption: 3W maximum

Usage conditions: only indoors, humidity ≤ 95%

Supply voltage: 230

Output voltage for solenoid valve: 9-12V

Alarm gas density level: 0.1% -0.5%

LEL (Lower Explosive Limit): 20%

Siren volume: ≥ 85dB / m

Dimensions / Weight: 115 x 72 x 41 mm

Characteristics gas solenoid valve

Closing mode: Current or manual impulse

Closing voltage: DC 9 ~ 12V (Pulse)

Closing time: less than 1 second

Connection: 3/4 "inner thread

Maximum pressure: 100 kPa

Made from: Others say alama

Operating temperature: -26 ° C ~ + 60 ° C

Cable connection length: 90 cm

The package contains

Gas sensor: Yes

Gas solenoid valve: Yes
