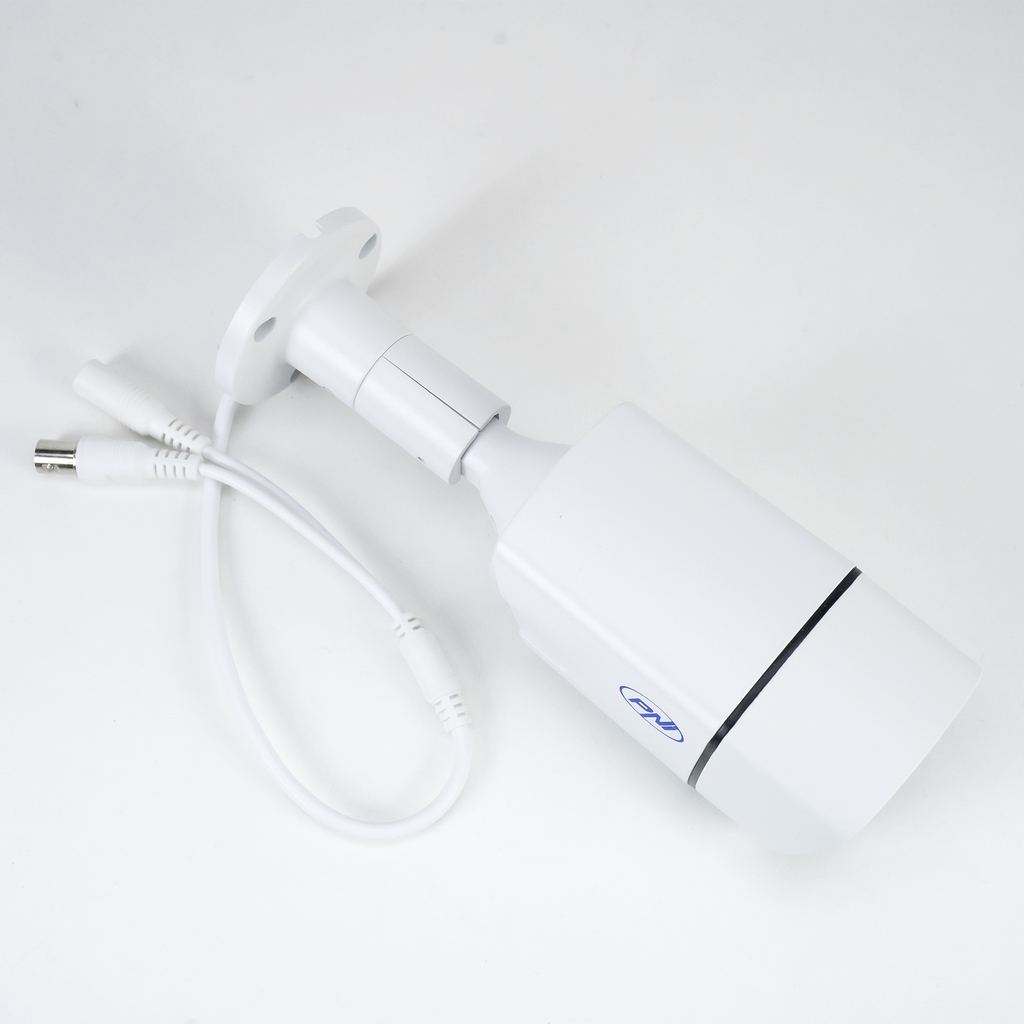

PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs

  • PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs
  • PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs
  • PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs
PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs PNI Video Surveillance Camera House AHD32LR CCTV, 2MP, 1080P, Outdoor IP66, 36 IR LEDs

✔️ Night time visibility

Thanks to the 36 IR LEDs, the PNI AHD32LR camera can view at night up to a distance of 30 m. The metal housing ensures water and dust resistance, class IP66. You can use the PNI House AHD32LR 2MP camera to monitor your home, offices, factories, shops, hospitals, etc. Simple, convenient and real time. The camera is equipped with the VOX function.


✔️ AHD Resolution (2MP) (Analog High Definition)

The AHD32LR analog camera has a resolution of 1920 x 1080px 2MP, providing clear and real-time images. Minimum lighting at night: color 0.1 Lux (F1.2, AGC ON) and black and white 0 Lux (IR LED ON).


✔️ Compatibility

The PNI AHD32LR camera is compatible with the PNI House PTZ1300 system and, in general, with the systems that support video signal type AHD, TVI, CVI.

The PNI House PTZ1300 hybrid system supports up to 4 5MP analog cameras or 16 1080P IP cameras or 8 5MP IP cameras or 4 5MP analog cameras and 2 1080P IP cameras.

The AHD32LR PNI camera is powered at a voltage of 12V / 2A (power supply not included). For power, you can use the 230V - 12V 1A PNI Power Supply or the 230V - 12V 5A PNI Power Supply along with a 1x5 splitter to power multiple cameras.


Product identification

Producer PNI

Product code PNI-AHD32LR

Color White


General characteristics

Minimal lighting 0.01 Lux

Distance IR illumination Up to 30 m

Number of LEDs 36

Video output Analog, BNC connector

Supply voltage 12V / 1A

Image sensor 1/3" CMOS

Sensor resolution 2.0MP

Size 63 x 166 x 63 mm

Use Inside or outside

Case Metal

Image resolution 1920 x 1080 px

Cut IR filter

Operating temperature -26°C ~ +80°C

LENS 3.6 mm

Waterproof class IP66

Video signal type AHD, TVI, CVI, CVBS

ONVIF


The package contains

Surveillance camera

User manual

Software CD
