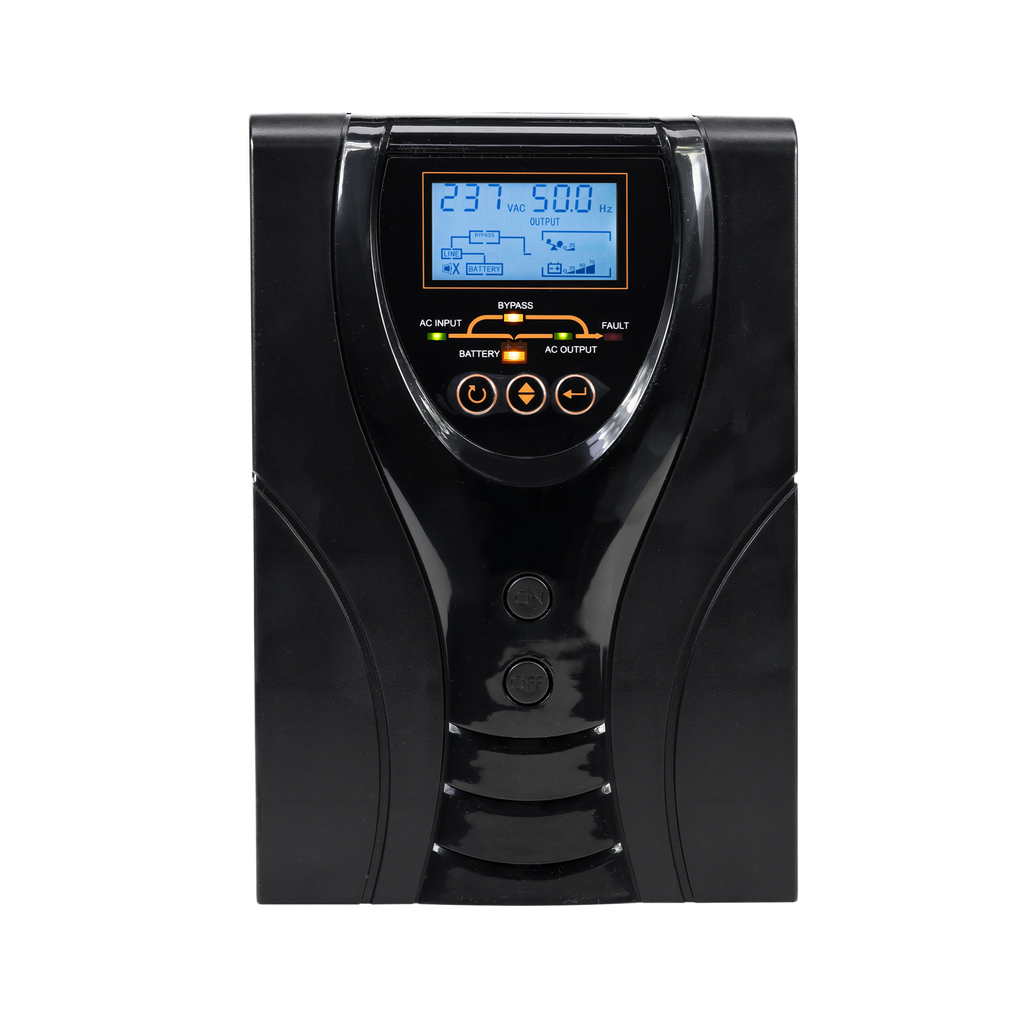

UPS - Uninterruptible power supply Sinusoid pure for thermal power plants

The SilverCloud SafePC 600W UPS is the ideal solution for protecting wood-fired power plants, engine equipment, and other electronics that are susceptible to short-time and long-term power outages. The device operates with an input voltage of 140 ~ 280VAC +/- 2% providing a constant output of 230 V +/- 10%.

Overload and short-circuit protection

The Silver Cloud SafePC 600W is equipped with a smart protection system in the event of overloading, overloading, or shorting, and with a fuse that protects the electronic equipment from possible damage after a short circuit.

AVR - Output Voltage Stabilization

The device also has a voltage stabilizer on the output, a function that offers the most accurate voltage and close to that required for powering the electrical and electronic equipment in your home.

USB-PC communication / monitoring

The SilverCloud SafePC 600W UPS is equipped with an intelligent monitoring / control and diagnostics function and technical parameters that can be tracked from a PC / Laptop via the USB Connection and USB cable available in the package. Once connected to a PC / Laptop with Internet access, you can track the remote UPS's operating parameters via the Internet with applications such as TeamViewer.

Autonomy: External battery / battery

The device allows you to connect a car battery or as recommended by a GEL VRLA AGM large capacity (50 - 200Ah) battery that does not require maintenance and has a long service life. This provides a backup time of up to several hours in case of power failure, the duration varies depending on the instantaneous consumption. The device automatically charges the battery when it stops running.

LCD screen and smart menu

The UPS will alert you both visually and visually in the event of a low battery level, when switching to battery power or overcharging. The LCD screen will allow you to monitor the device's operating status, battery level and warnings.

Available connections

The SafePC 600W UPS has 2 Schuko outputs for powering 230V electronic devices, a fixed line line in / out, and a PC / Laptop system monitor / diagnostics USB connector.

Entry

Tension: 140 ~ 280VAC +/- 2%

Frequency: 45-65 Hz

AC Auto Restart: Yes

Low / high frequency alert: Yes

Output

Tension Inverter: 230VAC (+/- 2% RMS), AVR: 195VAC-245VAC Frequency: 50Hz / 60Hz +/- 0.2Hz

Inverter efficiency (max): > 75%

Efficiency bypass: > 95%

Transfer time Typical: 6ms 10ms (max)

Battery

Type: With lead acid

Capacity: 30A - 200A

General characteristics

Smart display / screen: Yes

Smart multifunction menu: Yes

Power: 850 VA / 600 W

Output voltage stabilization : 195VAC-245VAC

Protection: Overcharging / poor battery / short-circuit / overheating Overload protection: 110% ~ 125% R load - 30S protection; 125% ~ 150% R load - 3S protection; > 150% R load - 500MS protection;

Temperature of use: 0 ~ 40 ° C Humidity 10% ~ 90% RH without condensation

Alarm sound level: ≤ 60 dB

Dimensions / weight: 315 x 145 x 210 mm

Communication interface: USB

PC monitoring software: Yes

Fixed line telephone line protection: Yes

Cable length: 1.2 m

Compatible battery / battery voltage: 12 V

Battery low / overloaded alert: Yes

Low / overloaded battery self-connection: Yes

Battery connection cables: Yes, red and black, 80 cm each

VAC output connectors: 2 x schuko socket

The package contains

UPS unit: Yes

Power cord: Yes

User manual: Yes

CD software: Yes

Monitoring cable Yes: USB

Car battery connectors: Yes
